Mini Relays
Micro Relays
High Performance Relays
Flasher Unit
Timer Unit
Smart Beam

Mini Relays

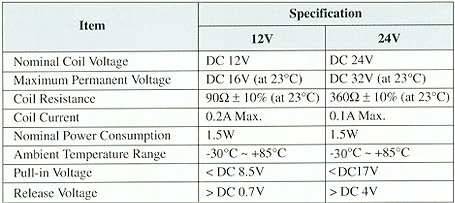

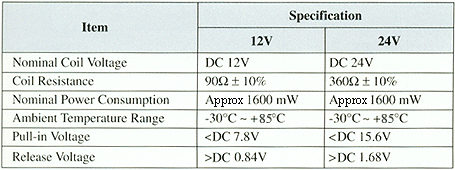

Coil Characteristics





Referential Data

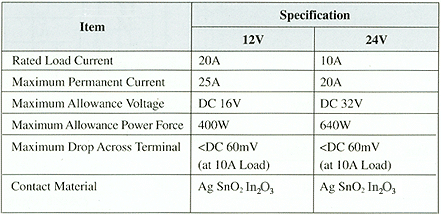

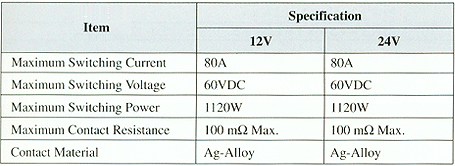

Contact Ratings

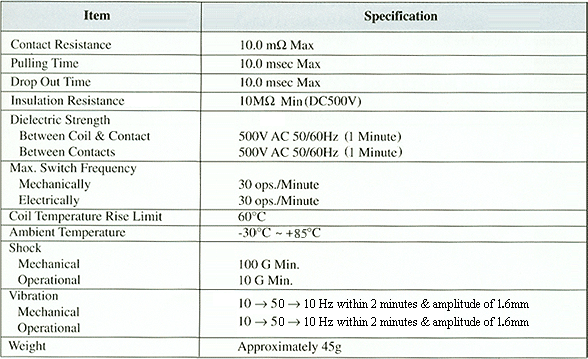

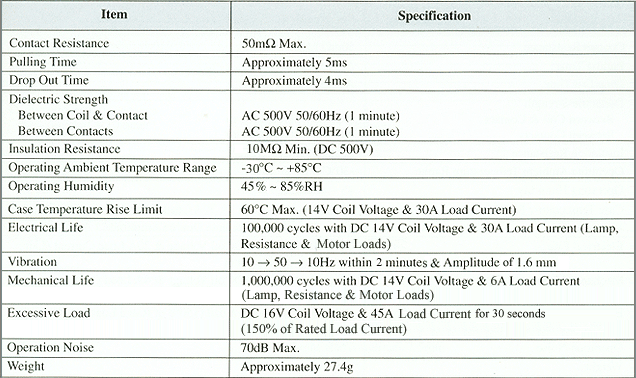

Performance (at initial value)



Micro Relays
Coil Characteristics





Referential Data


Contact Ratings



Performance (at initial value)



High Performance Relays

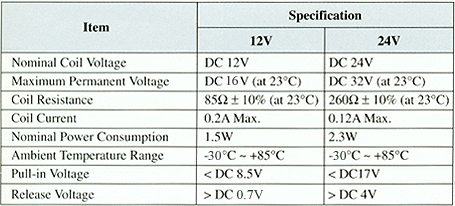

Coil Characteristics





Referential Data

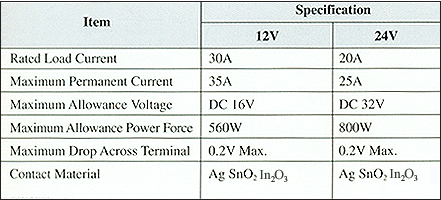

Contact Rating

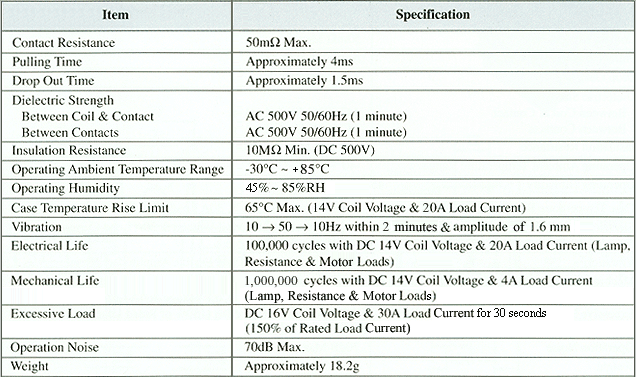

Performance (at initial value)



Flasher Unit

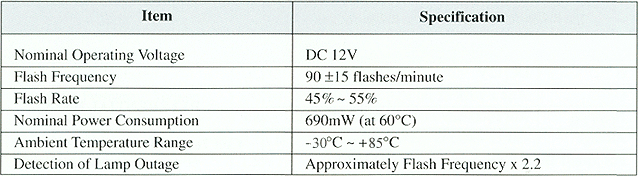

Coil Characteristics



Load Rating

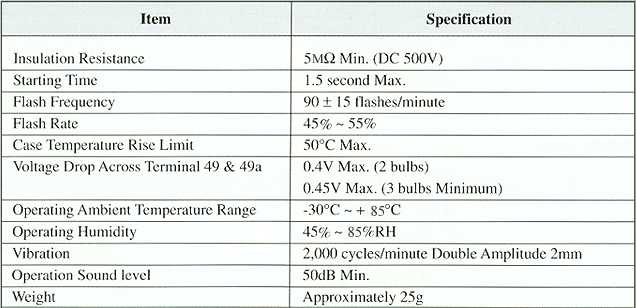

Performance (at initial value)



Timer Unit

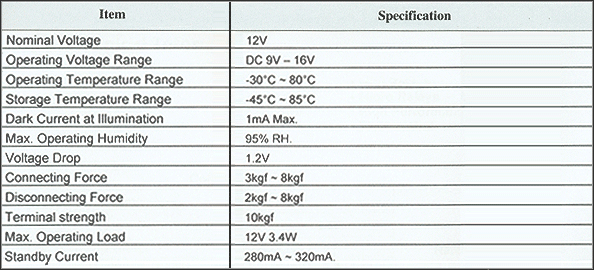

General Specification



Additional Data

* This product is specially customized for Proton Sdn. Bhd.
Smart Beam

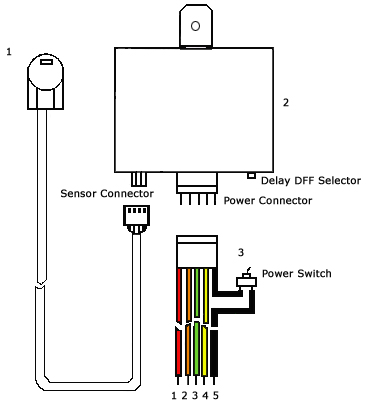

Power Harness
No.
Colour
Function
1
RED
+12Volt
2
ORANGE
ACC OnN
3
GREEN
Parking / Tail Negatif ON
4
YELLOW
Head Light Negative ON
5
BLACK
Ground

VOLTAGE
12VOC NOMINAL
CURRENT CONSUMPTION
15mA BRIGHT
300mA DARK
OPERATING TEMPERATURE
-40 - +80
PARKING LIGHT ON
800 30 Lux
PARKING LIGHT OFF
1500 100 Lux
HEAD LIGHT ON
110 30 Lux
HEAD LIGHT OFF
230 30 Lux

* note:- Light level according to spektralink measurement
standard ( SOP - EN - OI )

* Specifications are subject to changes without prior notice.



  2005 by SPEKTRALINK AUTO ELECTRONIC SDN BHD. All rights reserved.
